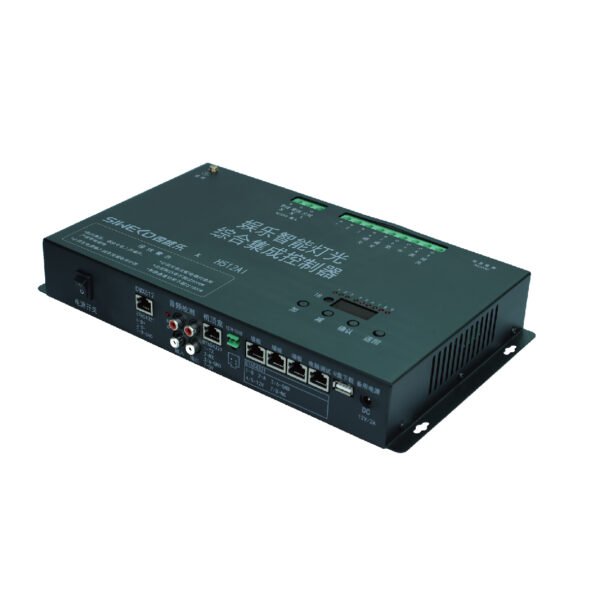

Siwelo DMX Intelligent Controller（512 universal）四维乐灯光控制器KTV包房灯光控制器

BASIC PARAMETERS：
Model:H512AI
Input Voltage:AC220V,50HZ
Backup power supply:12V
Internal Power Consumption:Less than 12W
Operating Temperature:-10°C~40C
Strong power interface total power:5000W single maximum power 1000W

FUNCTION OVERVIEW：
Power switch: 9-way power switch channel, to meet the needs of most room
usage
Air conditioning control: 678 road switch can be set through the software to
control fan coil air conditioning, 4 road 5 road channel can be set individually for
the valve off and valve open function.
Exhaust: the 9th default exhaust function, you can also set the software channel
3 multiplexed exhaust 2 functions
Infrared control: you can learn and transmit infrared remote control code to
control various effectors.
VOD protocol: compatible with various VOD protocols, different VOD manufacturers
just need to replace different wiring to complete the docking.
Wall plate: Default 3-way 12V wall plate interface, compatible with most
peripheral manufacturers wall plate, 5V wall plate interface only need to add an
adapter to complete the docking.
U disk: download the lighting parameters, wall plate protocol, VOD protocol
through the U disk, you can also upgrade the function of the machine through
the U disk.
DMX512: support standard DMX512 protocol, a new signal processing mode, the
signal refresh time up to 30 frames per second, fast lighting changes, no time
delay
RS485 debugging: can be debugged through the RS485 lighting effects, only a
network cable, can be connected to the computer debugging, the signal is more
stable, not afraid of the machine and the computer between the distance is long,
you can freely choose the best debugging observation points
WIFI debugging: the use of WIFI debugging box, wireless debugging, eliminating
the need for wired trouble, while the WIFI debugging basin can also be extended
through the network cable, you can put the debugging box near the computer,
not afraid of the distance signal is not stable.
Dimming software: a new concept of lighting debugging, a large number of
built-in materials can be directly called, can be freely assigned to the library
channel, the same type of lamps and lanterns channel definition is not the same
can also be directly universal effect, greatly improve the efficiency of on-site
dimming, so that the dimmer with the least amount of time, adjust the most
gorgeous effect!
Audio detection: exclusive audio detection algorithm, no need to adjust the
sensitivity to adapt to the normal use of the environment
Shake detection: with 220V shake detection interface, you can add a separate
shake effect under the effect of the default scene to increase the customer’s KTV
entertainment experience.
Scene: 30 regular scenes, fully meet the KTV, small and medium-sized bars for a
variety of lighting effects needs
